VOLPATO LVO 150 T pulidora de madera nueva

No. 04320

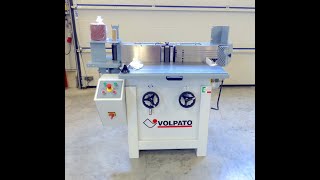

Edge grinding machine VOLPATO LVO 150 T
New machine, 100% made in ITALY
Year of construction 2022
Immediately available from stock
Combined edge sanding machine with multiple work options.
Independently motorized belt oscillation, mechanically adjustable up to a maximum stroke of 20 mm.

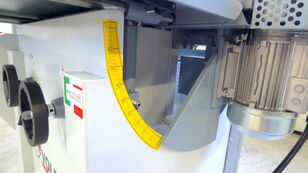

The complete sanding unit can be swiveled up to 45° from the vertical, every angle in between is continuously adjustable.
In the basic setting, designed as a 1-station solid sanding machine, it can be converted in a very short time for precise veneer sanding using the veneer edge sanding device included in the scope of delivery. Thanks to the 1-place solution, the machine can also be set up against a wall to save space. The basic equipment includes a 5-part set of grinding wheels (Ø 25-30-35-40-45-50 mm).
By using different belt grains, you can achieve different surface finishes and degrees of wood removal.
Belt dimensions 2640 mm
Abrasive belt width 150 mm
Working table 940x460 mm
Sanding belt speed 15 m/s
Belt drive motor 4 kW
Motor for oscillation 0.15 kW
Diameter driven roller Ø 75 mm
Additional work table 350 x 300 mm
Sanding rolls Ø 25 – 30 – 35 – 40 – 45 – 50
Swing stroke 15 mm
Diameter dust hood Ø 100 mm
Including operating instructions in English
Including confirmation of compliance with CE standards
Other scope of delivery as shown
Terms of delivery: from stock
Transport dimensions approx. 1650 x 1100 x 1350 mm LWH
Weight approx. 250 kg
Visitation on site possible by appointment
Technical information, year of construction and scope of delivery according to the manufacturer, without guarantee
Subject to prior sale
The manufacturer's warranty regulations apply to new machines
